Full-Machine Design
Industrial structure, mechanical architecture, ergonomics, sealing, thermal paths, moving parts, tooling direction, and production-ready documentation.
Shenzhen Xianglong Product Design Co., Ltd.
AI-enabled healthcare hardware and full-machine product design.
We help medical, rehabilitation, wellness, and connected-device teams turn product ideas into reliable, manufacturable devices covering mechanical structure, electronics, firmware, software coordination, DFM, and cost control.
- 30+
- years in product design
- 8
- years leading US and Swedish R&D teams
- 360°
- mechanical, electronic, firmware, AI, DFM
Capabilities
Practical engineering support for real hardware programs.
Electronics & Firmware
Sensor, motor, battery, control board, Bluetooth, embedded firmware, and system-level debugging across mechanical and electronic boundaries.
AI-Enabled Products
Machine learning and deep learning concepts for connected hardware, intelligent monitoring, user feedback loops, and AI-assisted product systems.
DFM & Cost Control
Supplier communication, manufacturability review, production engineering, BOM control, quality risks, and practical cost reduction without weakening the product.
Products & Case Studies
Own-product development and client design programs.
Xianglong works across concept definition, mechanical architecture, electronics coordination, firmware logic, user experience, DFM, and production preparation.
Xianglong Own Product
Xianglong Smart Eye & Head Massager, XL-001 Brown Edition
An all-in-one smart wellness massager developed as Xianglong's first company product. XL-001 combines pneumatic pressure, heat, Bluetooth audio, voice control, and flexible wearing modes for relaxation, work breaks, sleep preparation, exercise recovery, and neck warming.
4 air bladder zones
7 preset modes
20-200 mmHg
Type-C charging
1-year warranty

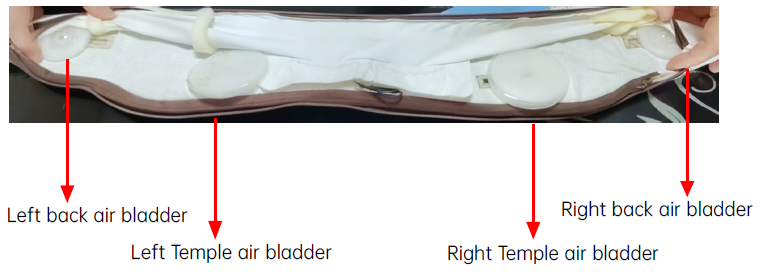

- Four independent pressure zones covering the eye area, temples, and rear head contact points.
- Detachable washable blue lining, adjustable nose support, and glasses-compatible wearing structure.
- Built-in battery and Type-C charging port, supporting charging while the product is in use.

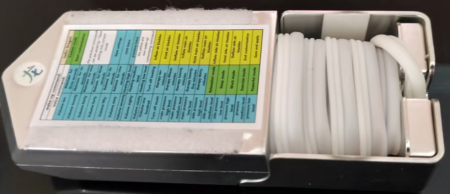

- External pneumatic host can be placed on a table, in a pocket, or temporarily attached to Velcro when hands are occupied.
- Tube routing and storage are designed for a cleaner user experience and reduced noise transfer.
Flexible Wearing Modes
- Eye coverage mode: for relaxation, sleep preparation, and short work breaks.
- Reverse forehead mode: supports alternate wearing when forehead pressure or back-head pressure is preferred.
- Exercise fit: anti-slip wearing stability for light movement and post-exercise recovery routines.

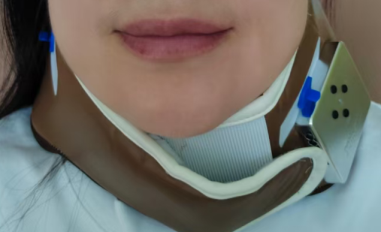

- Neck heating mode: soothing warmth support with adjustable wearing position.
- Glasses compatible: structure leaves space for glasses in supported wearing scenarios.
Design Highlights
- Precision acupoint-oriented pressure layout.
- Ultra-quiet pneumatic operation with separated host and tube routing.
- Adjustable speaker position and integrated audio feedback.

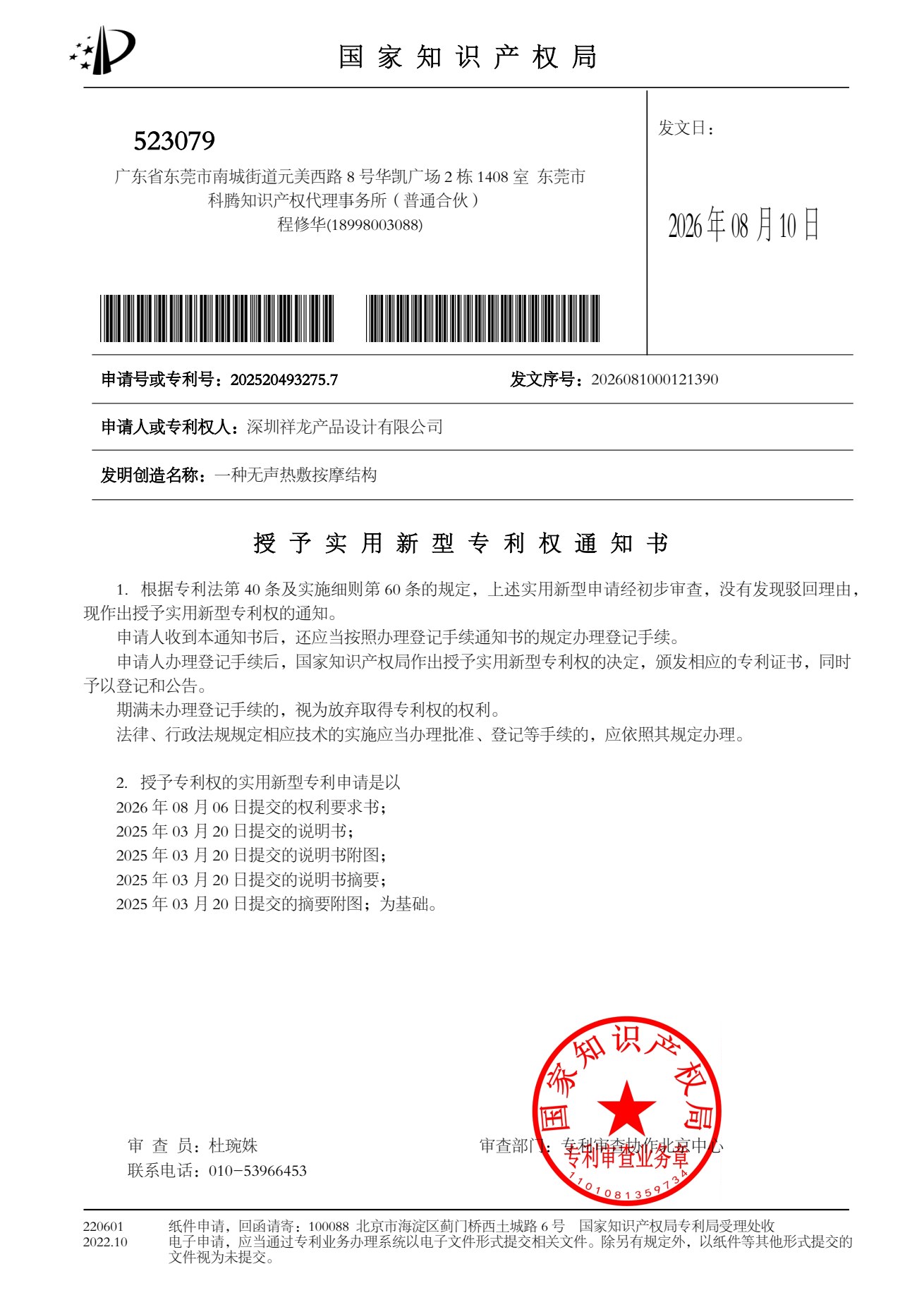

- Patented product concept and proprietary control design.
- Modern brown edition surface finish for a softer consumer wellness identity.
Preset Programs
Seven intelligent modes tuned for different usage scenes.
| Mode | Pressure | Volume / Intensity | Heat | Time |
|---|---|---|---|---|
| Relaxation | 120 mmHg | 30% | Medium | 25 min |
| Sleep | 65 mmHg | 10% | Low | 30 min |
| Work | 100 mmHg | 0% | Off | 15 min |
| Exercise | 150 mmHg | 60% | Off | 20 min |
| Powerful | 200 mmHg | 50% | High | 10 min |
| Custom | User-defined | User-defined | User-defined | User-defined |
| Reverse Wearing | 120 mmHg side | 80% | Off | 15 min |
Key Control Interface
The power key supports long-press power on/off and short-press mode switching. The function key cycles through main pressure, side pressure, heating level, pressure hold time, release time, treatment time, and other parameters. The plus and minus keys adjust the selected function level.
Control Range
- 20-200 mmHg adjustable pneumatic pressure.
- Two built-in pressure sensors for 10 mmHg step control.
- 0-100% volume and heating adjustment.
- 1-10 second pressure hold and release duration.

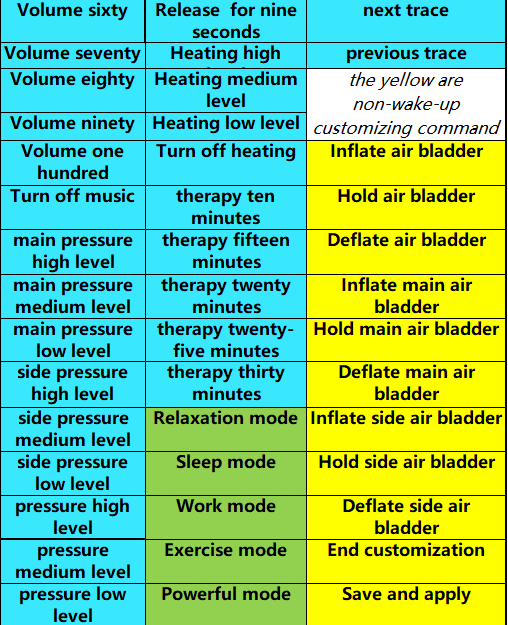

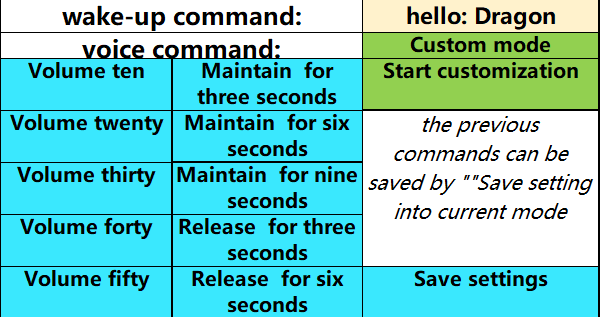

Audio & Voice
- Bluetooth music connection via Xianglong4251.
- Hands-free calling with built-in microphone and speaker.
- Six built-in light music tracks.
- Voice control and audio prompts for main operations.
- Analog voice amplifier design for low background audio noise.
Product Gallery
Prototype photos and product details from the XL-001 presentation.

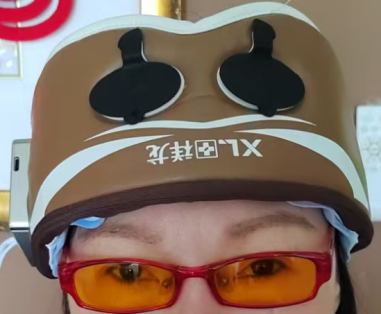

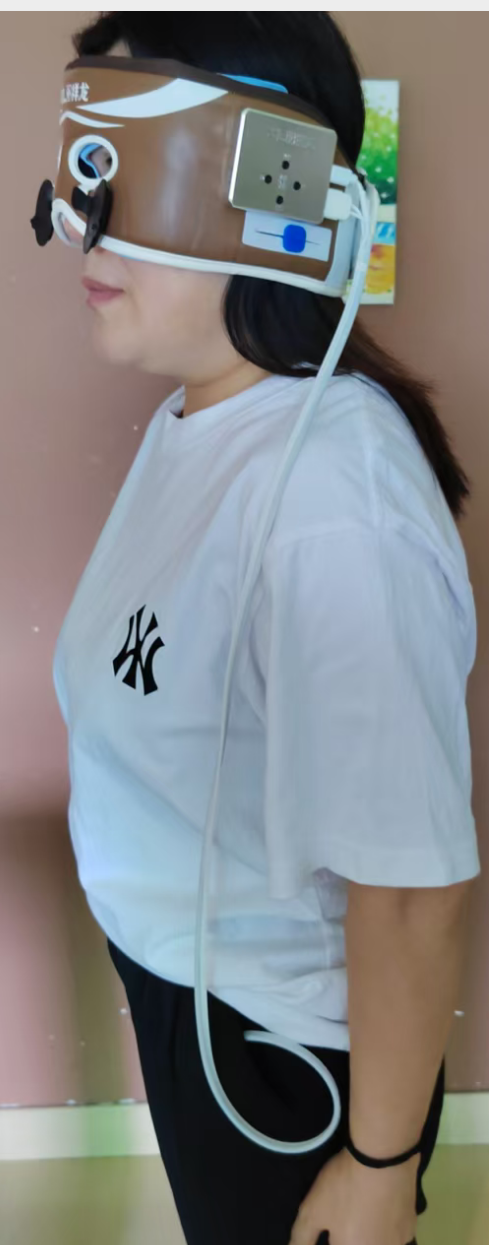

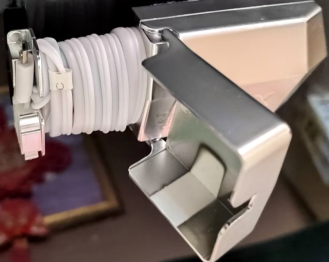

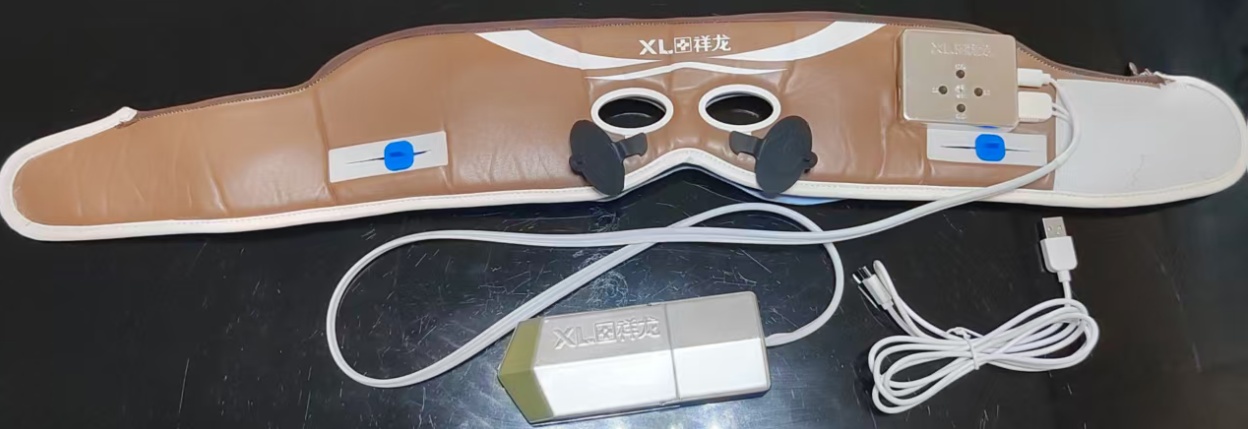

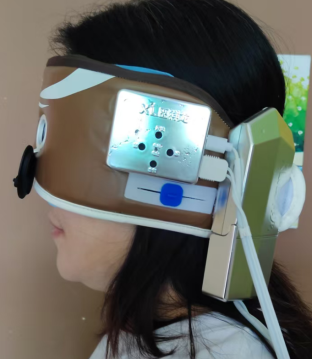

These images show wearing scenarios, the external pneumatic host, air bladder layout, charging cable, tubing, control module, and detailed product construction.
Client Product Design

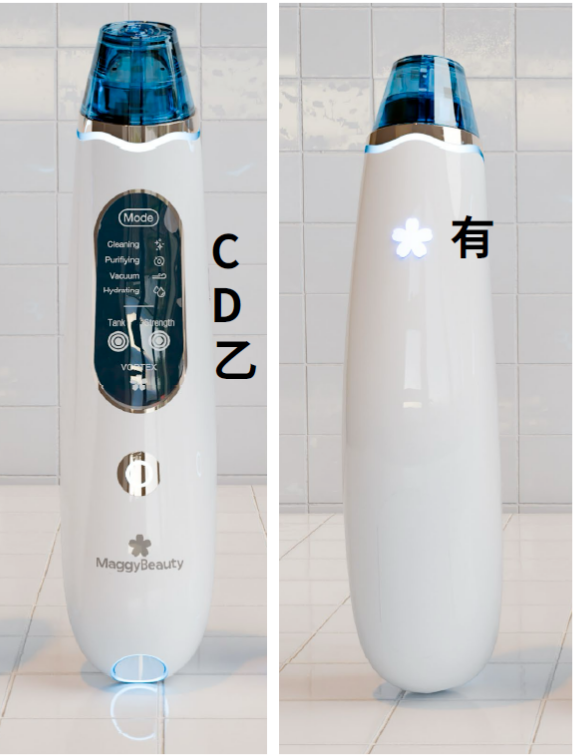

Smart Blackhead Remover for a French Client

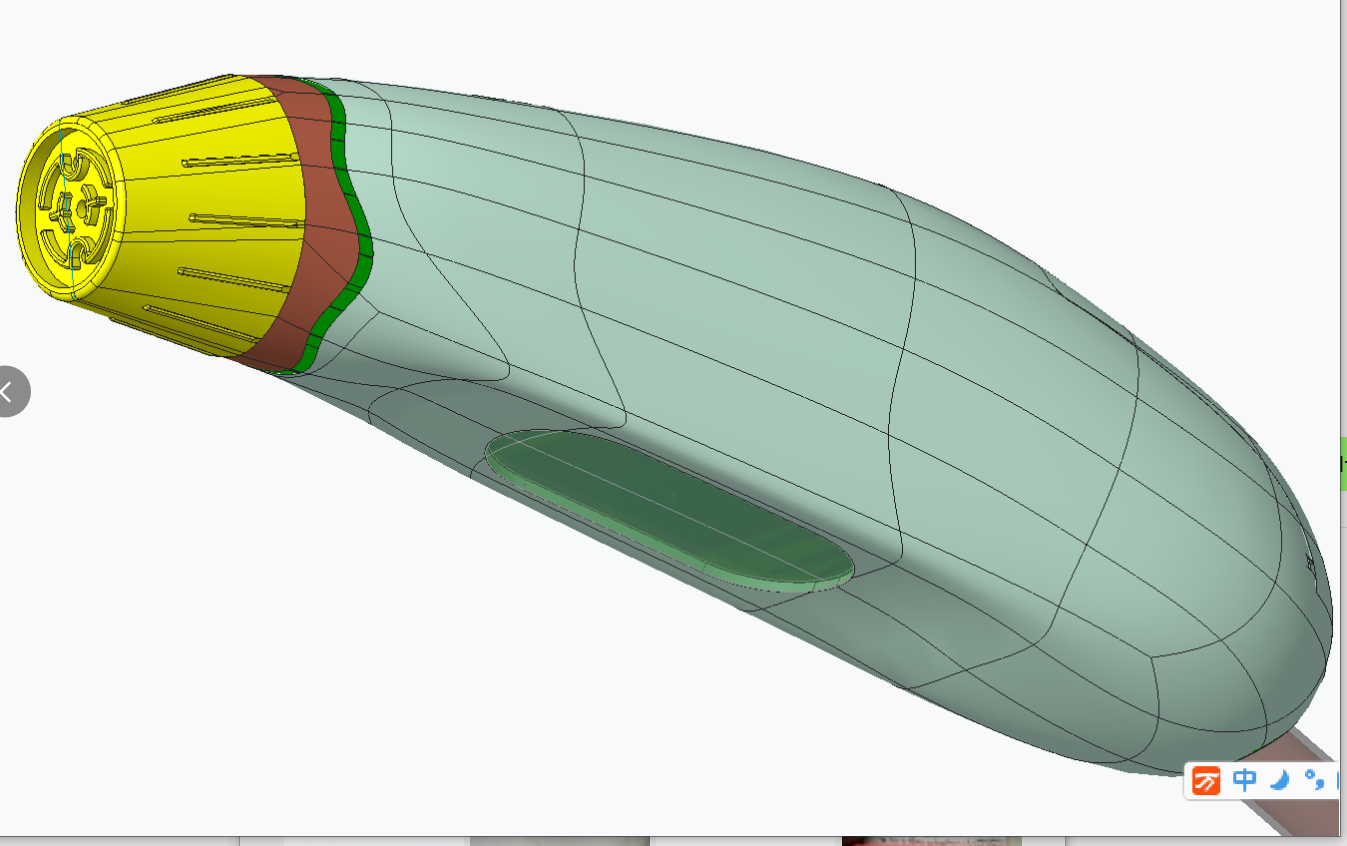

A beauty-care hardware program covering full-machine structure, suction and liquid-path integration, automatic solution switching, screen-guided operation prompts, waste-water collection, internal component layout, PCBA coordination, and design-for-assembly review. Confidential commercial, quotation, and customer requirement documents are not published.
- Automatic switching between different skincare solution channels.
- Screen interface prompts the user when to change solution or operation mode.
- Used liquid is collected into a dedicated waste-water bottle for cleaner operation.
- Suction head, sealing path, replaceable nozzle, pump, sensor, and internal support structure were coordinated as one system.

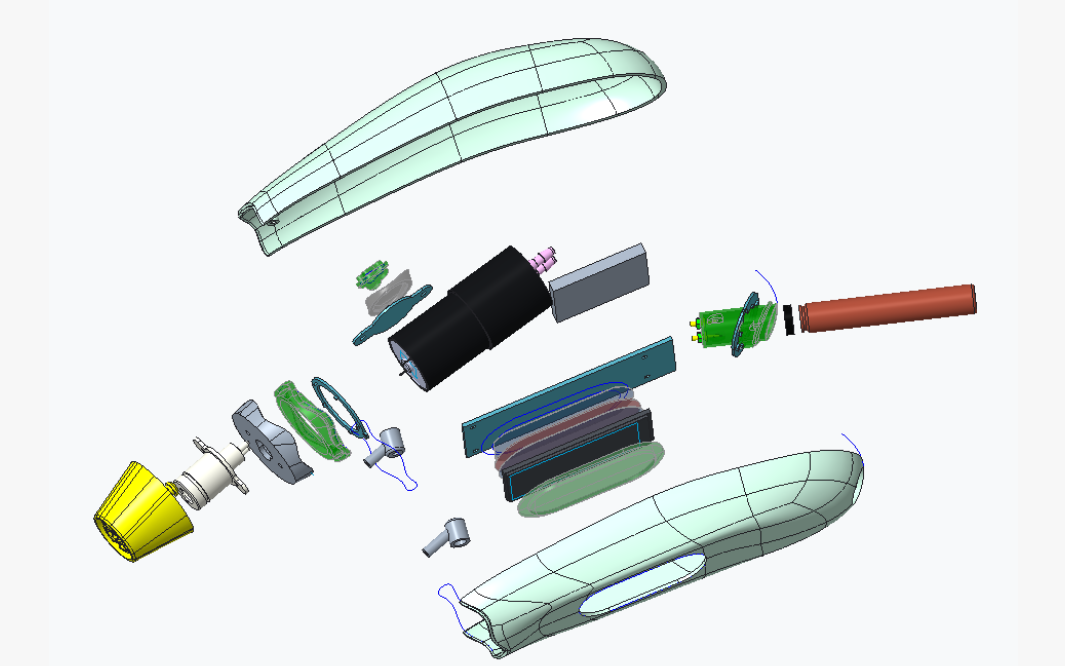

- Exploded mechanical design supported PCBA, motor/pump, battery, display/touch panel, and assembly sequence planning.
Leadership Background
Built around senior product judgment, not just drafting capacity.

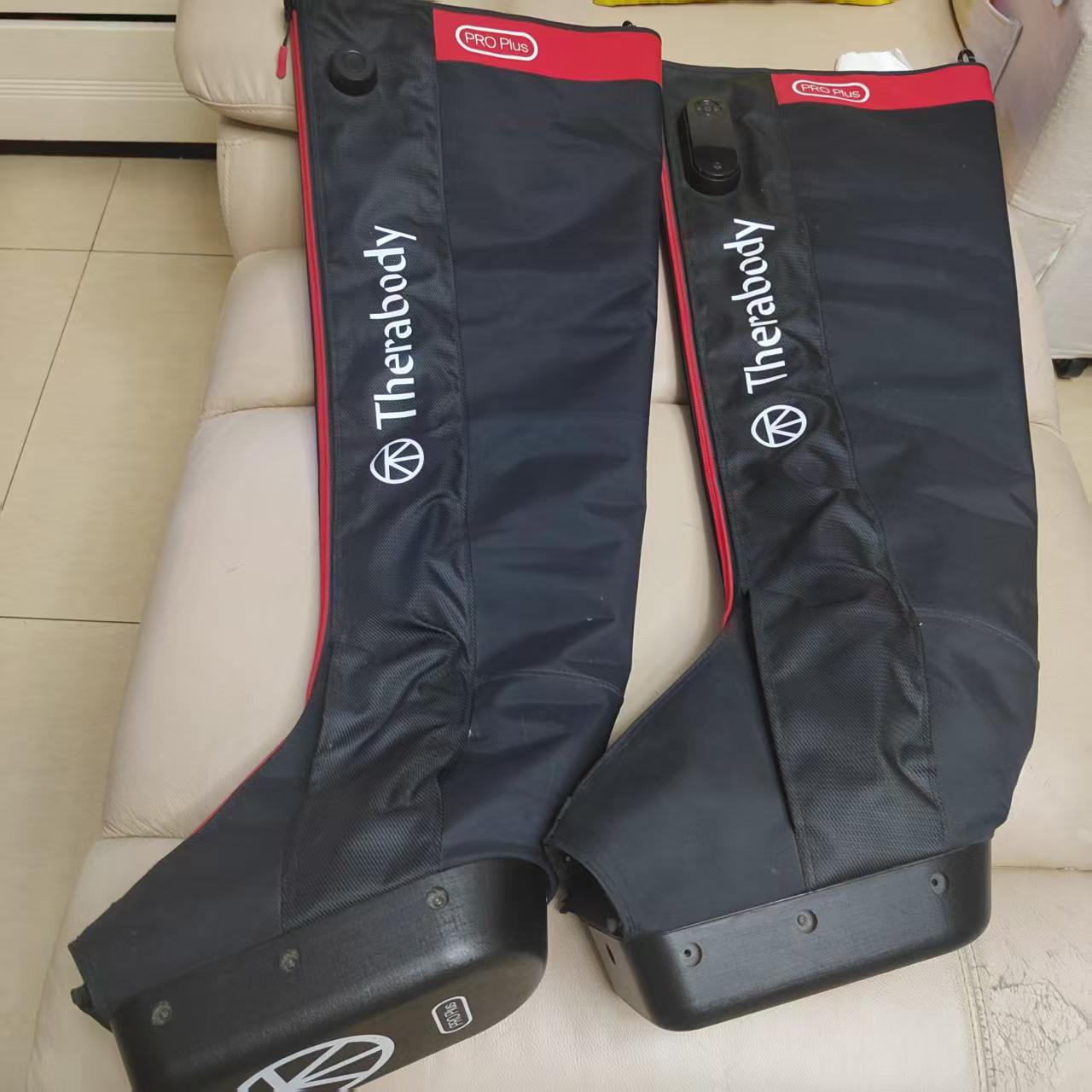

Therabody, United States
Five years as Product Development Manager, leading advanced pneumatic compression and wellness hardware development.
SHL, Sweden
Three years as R&D Manager, responsible for mechanical, hardware, software, and production engineering coordination.
Shenzhen Engineering Base
Close to suppliers, tooling, electronics, assembly, and production teams in the Greater Bay Area.
Contact
Discuss a healthcare or wellness hardware project.
Send early requirements, sketches, prototypes, or product targets. We can start with feasibility, architecture review, redesign, cost reduction, or full product development.
